The CM90 Hybrid

Maximum capacity for large-scale soil recycling projects
The CM90 Hybrid is our most powerful mixing plant for industrial soil recycling. Designed for large construction sites with the highest throughput requirements - from port construction and environmental projects to the replacement of entire soil layers. Where maximum performance is required, the CM90 sets the benchmark.
Configure now

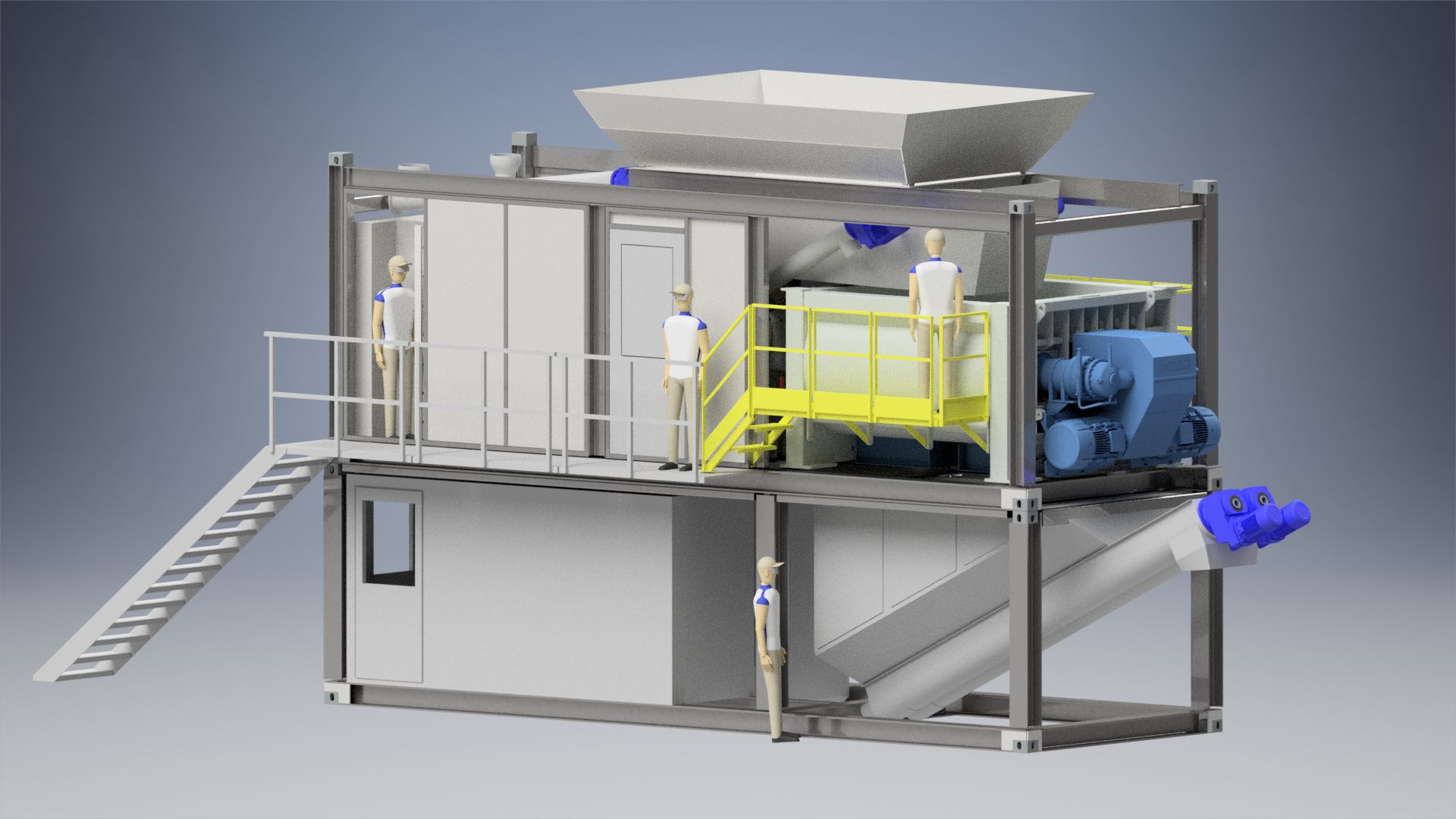

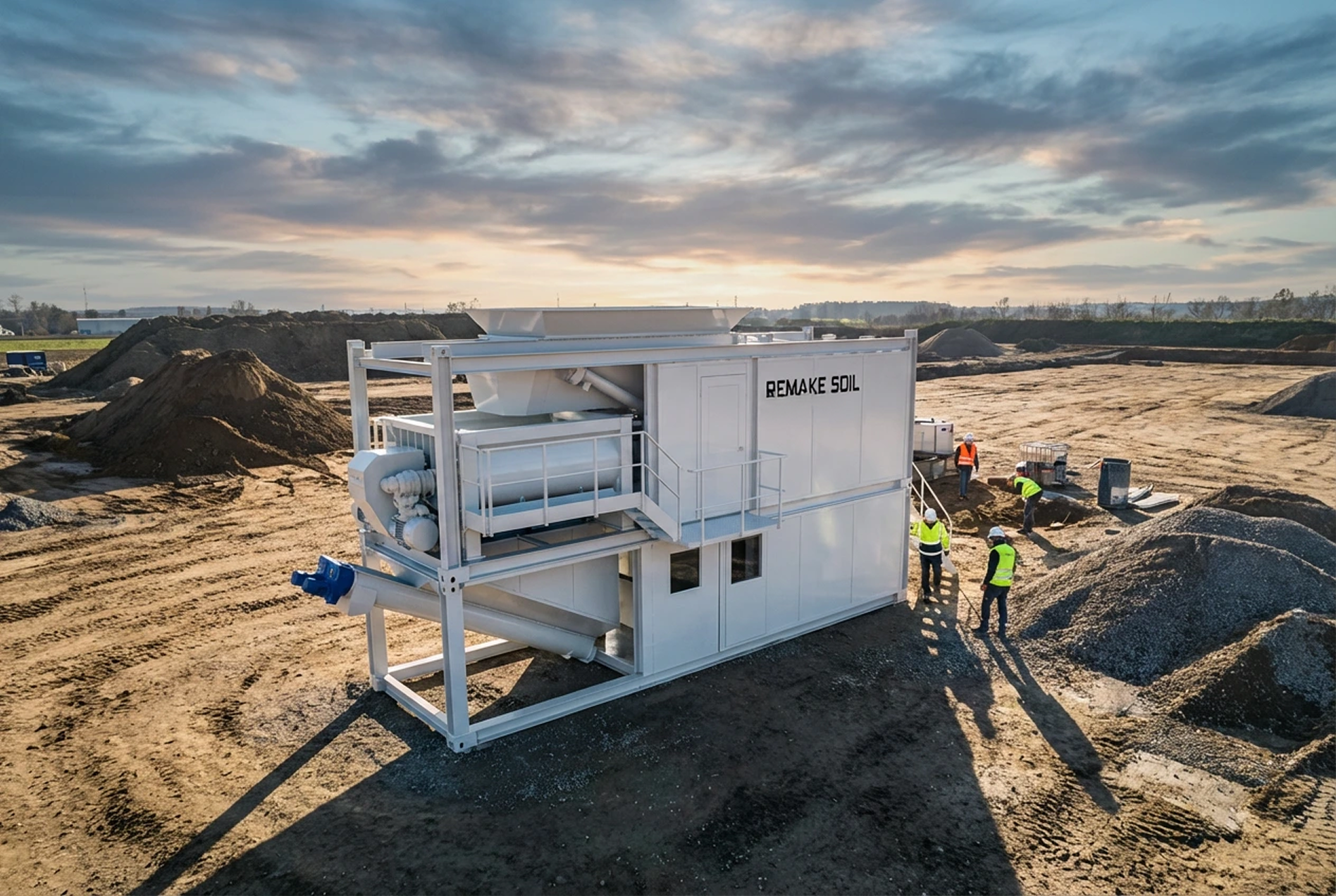

Mixing plant in container format

Advantages of the CM90 Hybrid

High-performance twin-shaft mixer

Industrial twin-shaft mixer with up to 3.0 m³ per batch - maximum homogeneity even with difficult soils and slurries.

Extreme mixing capacity

120-150 m³/h mixing capacity - ideal for port construction, large infrastructure projects and extensive environmental remediation.

Modular and transportable

For transport, the plant is divided into two modules and can be flexibly deployed on large construction sites or on ponton-based solutions in port areas.

Precise dosing at industrial scale

Siemens PLC with weighing systems for soil, binders and water - dosing accuracy of ±1-2 %, even at very high throughput rates.

Fully automated process control

Recipe management, touchscreen operation, batch documentation and optional remote control - designed for continuous operation and industrial processes.

We advise you personally and prepare an individual offer

René Radmacher, Managing Director

Technical specifications

The CM90 Hybrid in comparison

The technical data of the CM90 Hybrid compared with the CM60 Hybrid

Feature

CM90 Hybrid

CM60 Hybrid

Dimensions (L × W × H)
ca. 11,4 × 3,0 × 5,1 m
ca. 7,4 × 2,5 × 2,7 m
Mixing capacity
ca. 120–150 m³/h
ca. 40–55 m³/h
Total weight (empty)
approx. 12 t
approx. 3.5 t (with trailer and generator)
Total weight (full)
approx. 20 t
ca. 24 t
Binder silo
2 × ca. 3,5 t (erweiterbar)
2 × ca. 3,0 t
Countercurrent mixer
Sicoma, 0,5–1,0 m³ per Charge
Sicoma, 0,25 m³ per Charge
Motor power
30 kW
30 kW
Water connection
C-connection
C-Anschluss
Water tank with water pump
1.600 l
1.600 l
Perkins generator set
Perkins 167 kVA
Perkins 167 kVA
High-pressure cleaner
4 kW, 160 bar
4 kW, 160 bar
Air compressor
2,2 kW, 10 bar
2,2 kW, 10 bar
