CM30plus Hybrid | Mobile Mixing Plant

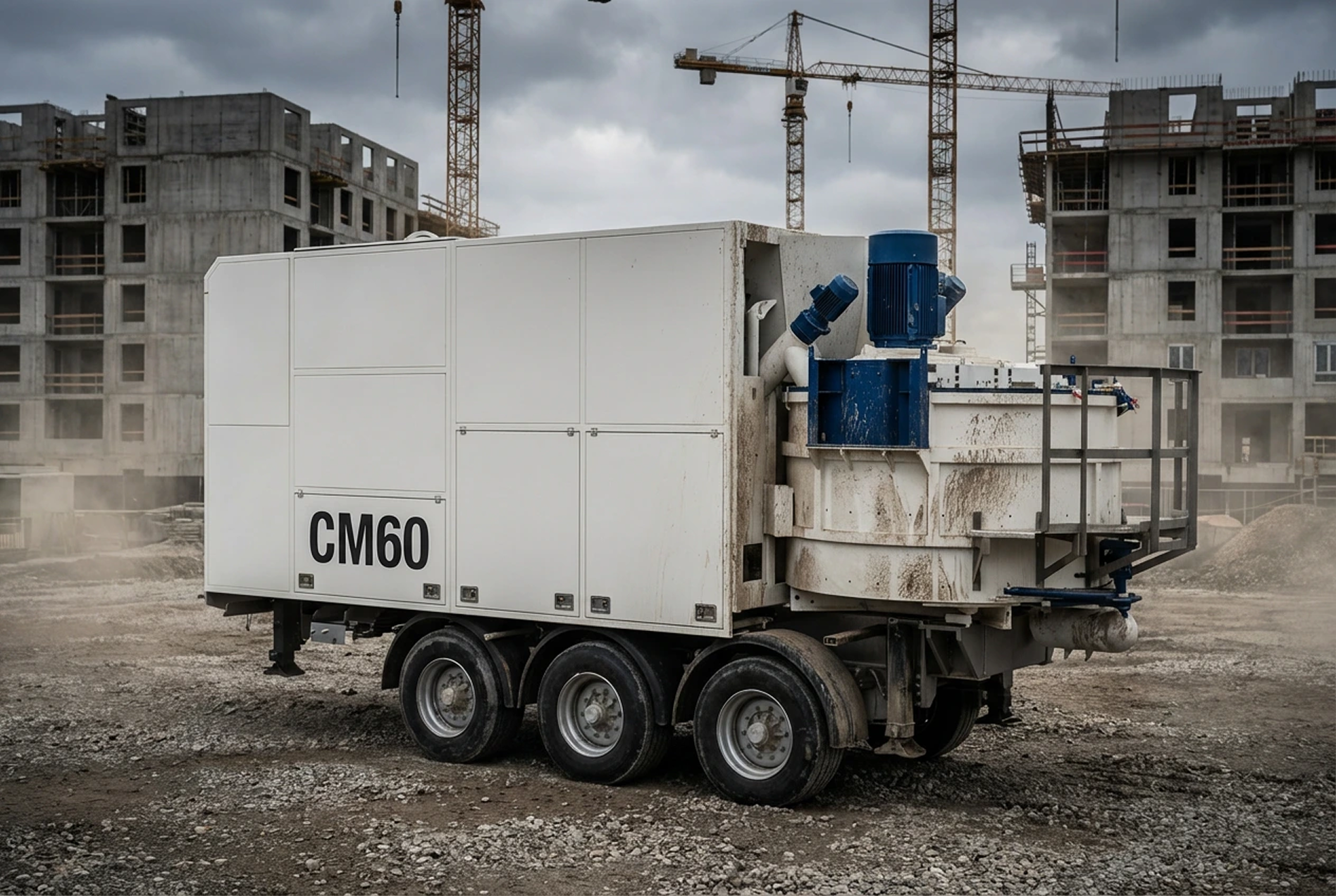

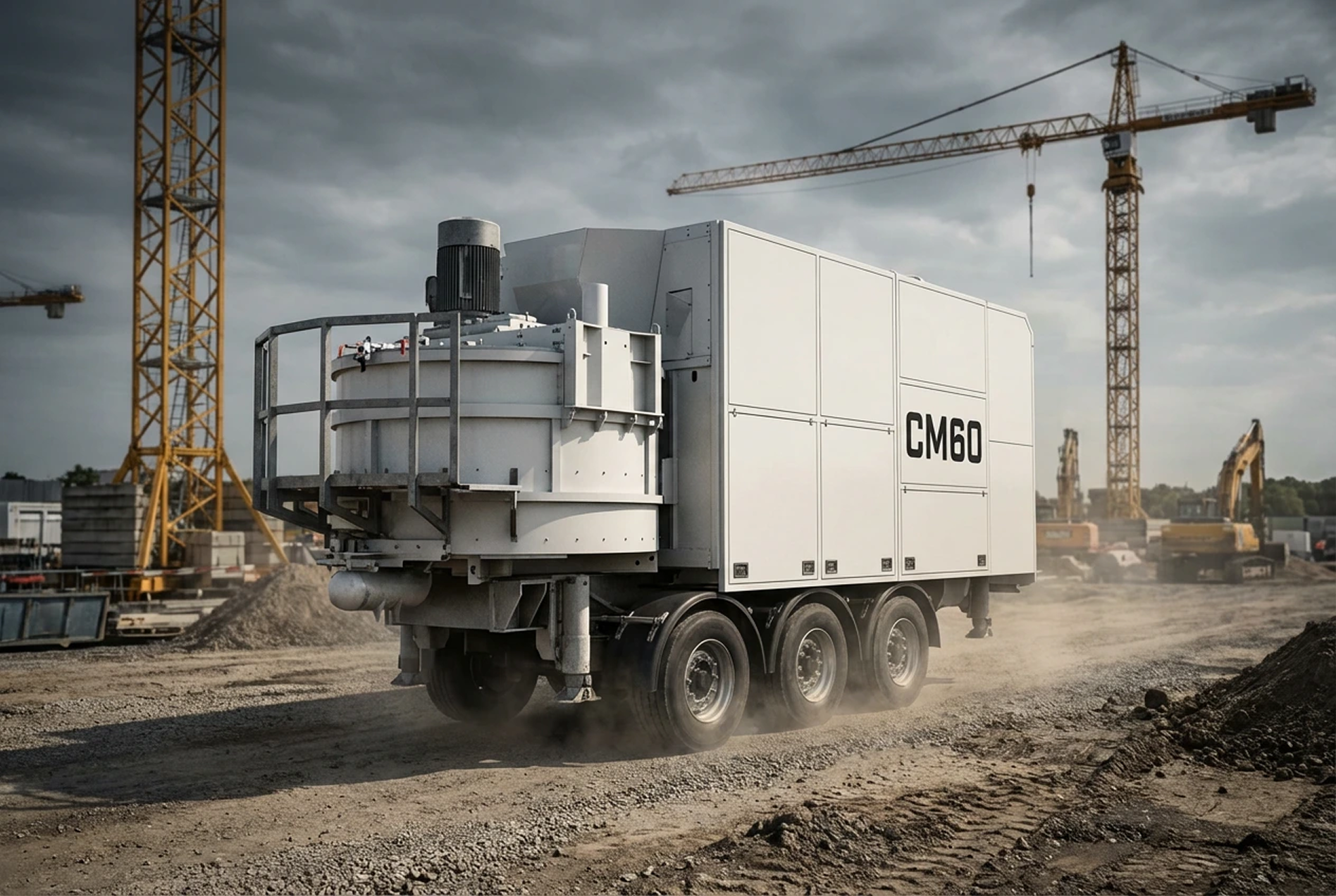

The CM60 Hybrid

Maximum performance for demanding soil recycling

The CM60 Hybrid is our powerful mixing plant for demanding soil recycling projects. Designed for high throughput with limited space requirements, it combines precise dosing, robust engineering and fully automated control - ideal for urban construction sites as well as large infrastructure projects.

Mixing plant in container format

Advantages of the CM60 Hybrid

Precise and reproducible

Siemens PLC control with weighing systems for soil, binders and water - dosing accuracy of ±1–2 % for consistent quality.

High mixing capacity

Up to 55 m³/h throughput - ideal for larger construction sites and continuous operation with high material volumes.

Robust and mobile

Mounted on a 3-axle chassis, suitable for changing locations and confined construction sites in urban environments.

Efficient mixing technology

Highly efficient planetary counter-current mixer with agitator, specially designed for difficult soils and slurries - homogeneous results in a short time.

Fully automated operation

One-button operation, touchscreen control, integrated batch documentation including printer for complete traceability.

We advise you personally and prepare an individual offer

René Radmacher, Managing Director

+49 33202 219898

Request a quote

Technical specifications

The CM60 Hybrid in comparison

The technical data of the CM60 Hybrid compared with the CM30 Hybrid

Feature

CM60 Hybrid

CM30plus Hybrid

Dimensions (L × W × H)

ca. 7,4 × 2,5 × 2,7 m

7,4 x 2,5 x 2,7 m

Mixing capacity

ca. 40–55 m³/h

30–40 m³/h

Total weight (empty)

approx. 12 t

approx. 3.5 t (with trailer and generator)

Total weight (full)

approx. 20 t

approx.6 t

Binder silo

2 × ca. 3,0 t

2 Stk, 100 l, ca. 3,0 t/Silo

Countercurrent mixer

Sicoma, 0,5–1,0 m³ per Charge

Sicoma, 0,25 m³ per Charge

Motor power

30 kW

30 kW

Water connection

C-connection

C-Anschluss

Water tank with water pump

1.600 l

1.600 l

Perkins generator set

Perkins 167 kVA

90 kW (112 kVA)

High-pressure cleaner

4 kW, 160 bar

4 kW, 160 bar

Air compressor

2,2 kW, 10 bar

2,2 kW, 10 bar
